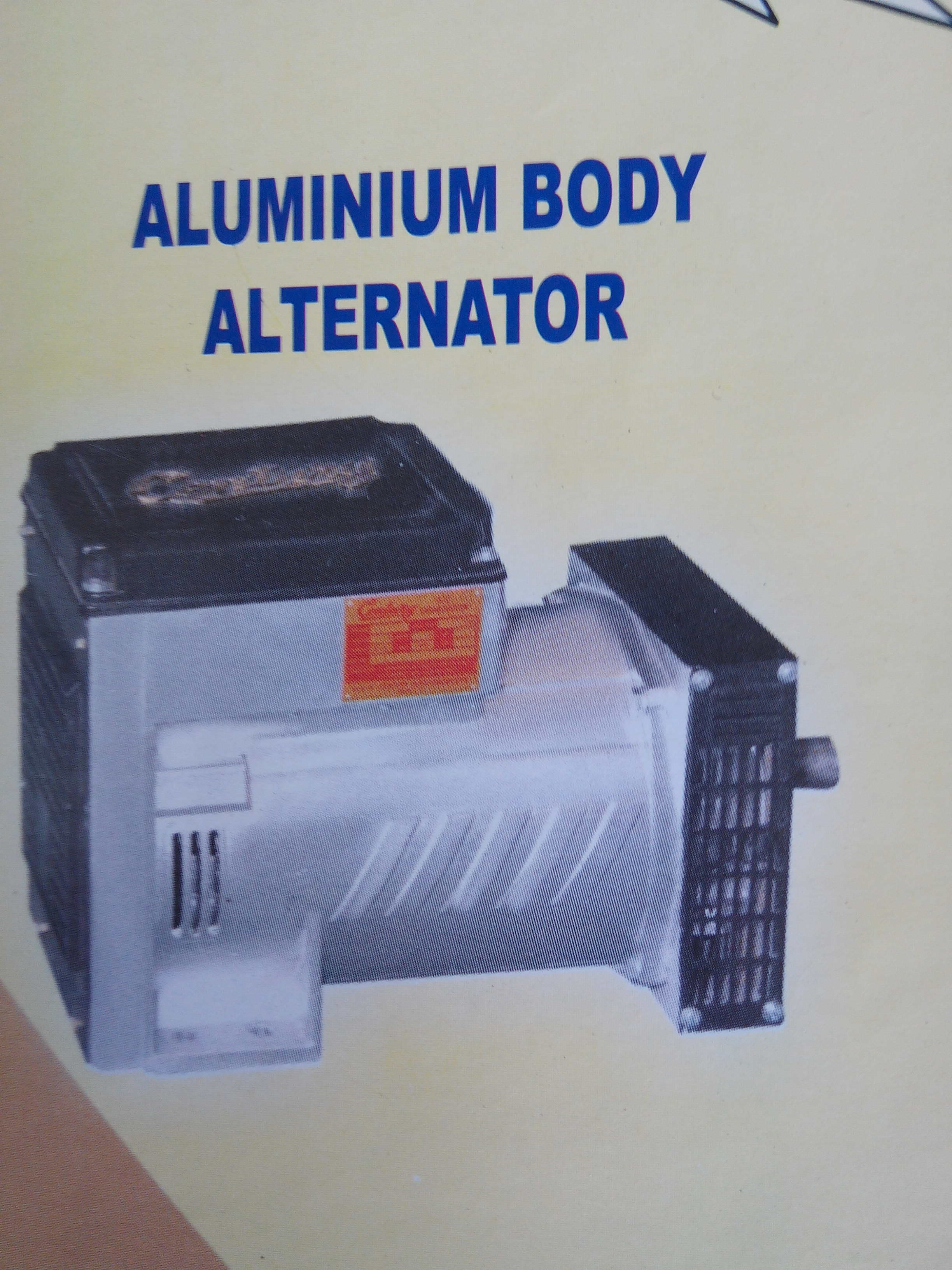

Technical Details Of Aluminium Body Copper Wound Ac Alternators

Transformer Brush Slipring Type, Aluminium Die Cast Body, Double Bearing,

SINGLE PHASE, 240 VOLT, 1500 RPM, 50 Hz, P. F. 1.0, AC ALTERNATOR, W.E.F. DT. 23/03/2021

Sr.no	KVA	KW	AMPERE	FRAME SIZE
1	2.5	2.5	10.4	112MC
2	3.0	3.0	12.5	112MC
3	3.5	3.5	14.6	112MC
4	5	5	20.8	132MC
5	7.5	7.5	31.2	132MC
6	10	10	41.7	132MC
7	12.5	12.5	52.1	160MC
8	15	15	62.5	160MC
9	20	20	83.3	160MC
10	25	25	98	160MC
11	30	30	115	200MC

THREE PHASE, 415 VOLT, 1500 RPM, 50 Hz, P.F. 0.8, DOUBLE BEARING AC ALTERNATORS

Sr.no	KVA	KW	AMPERE	FRAME SIZE
1	5	4	7	132MC
2	7.5	6	10.4	132MC
3	10	8	13.9	132MC
4	12.5	10.0	17.4	132MC
5	15	12.0	20.8	132MC
6	15	12.0	20.8	160MC
7	20	16	27.8	160MC
8	25	20	34.7	160MC
9	30	24	41.7	160MC
10	40	32	55.6	160MC
11	40	32	55.6	200MC
12	50	40	69.5	200MC
13	62.5	50	87.6	200MC
14	75	60	104.3	200MC
15	82.5	66	114.7	200MC
16	100	80	143	200MC
